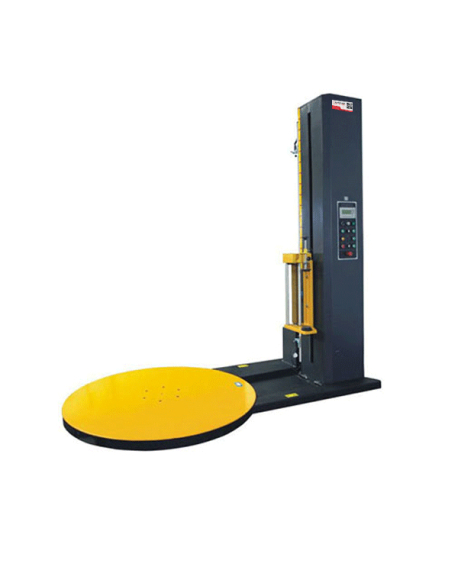

STEP Basic Pallet Wrapper
42.000,00 kr.
Semi-auto Pallet Wrapper Mechanical Brake offers the best value for factory operators to increase worker efficiency and reduce labor.
Description
STEP Basic Pallet Wrapper – is a Semi-Auto Pallet Wrap Machine Mechanical Brake for wrapping palletized loads with stretch film. It is provided with different functions, as: turntable soft start, manual or automatic mode and adjustable film pallet overlap. It is mounted with mechanical carriages. It is an economical model that meet general wrapping needs.
Features:
• PLC controlled, easy wrapping program setting.
• Both one touch automatic programs and manual run are available.
• Turntable speed & carriage speed adjustable on panel.
• Turntable stop start & stop.
• Turntable home position.
• Automatic detection of pallet height by photocell
• Open type carriage for easy film threading
• Carriage driven by dual chain system.
| Specifications: | |
| Wrap Speed | 30-40 Pallets/hour |
| Turntable Diameter | 1500 mm |
| Turntable Speed | 3-5rpm |
| Max Load Weight | 2000kgs |
| Wrapping Height | 2100mm |
| Turntable Height | 82mm |
| Carriage Type | Mechanical brake, 150% ratio |
| Wrapping Settings | Wrap cycles/top wraps/bottom wraps/overwrap |
| Carriage Speed | 5 meters/min max |
| Turntable Motor | 0.75kw |
| Carriage Lifter Motor | 0.37kw |
| Power | 1 PH 220VAC, 50/60Hz |
| Film Type | Stretch film thickness 17-35microns, width 450-500 paper core 76mm, max weight 18kgs |
Options:
• Turntable diameter 1650mm, 1800mm, or 2000mm
• Wrapping height 2400mm or 2600mm
• Access ramp for loading
• Turntable could be M-shaped
• Top platen driven Pneumatically for light products
• Ring bearing structure turntable for extra heavy loads.
