STEP Easy Band 60B-600
78.900,00 kr.

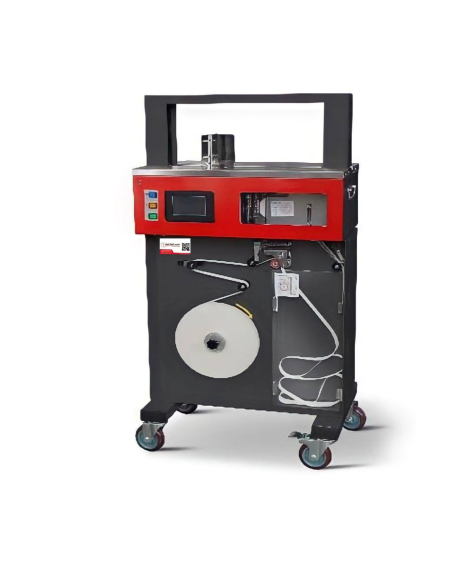

STEP Easy Band 60B-600 is an easy-to-use and dependable trolley-mounted banding machine. It has a banding speed of 25 cycles per minute and can utilize 29 mm wide paper and polypropylene tapes on reels up to 800 meters long. The maximum banded light it produces is L400 x H 200 mm.
Description
Features:
• Compact design
• Motorized reel holder for autonomy up to 800 meters
• Digital display visualizer
• Parameter adjustment directly from the control panel
• Easy maintenance
• Banding group with 24 vdc motors
• Adjustment by means of a ring nut for tensioning the clamp
• Manual or automatic banding system via sensor
• Welding time adjustment
• Adjusting the time between one banding and the next (only in automatic mode)
• Adjustment of the release time of the strap
• Language preference
• CE directives-compliant machine
| Specifications | |
| Model | STEP Easy Band 60B-600 |
| Item No. | 41531000-A60.60 |
| Machine Size | L 630 x W 460 x H 1100 – 1330 mm |
| Net weight | 75 Kg. |
| Supply voltage | 220 Volt |
| Power frequency | 50/60 Hz |
| Noise level | Complies with DIN 45635/27 |
| Speed per minute | 25 cycles |
| Reel holder | Motorized with independent base |
| Band type | Poly-coated kraft paper, PE / OPP film |
| Band width | 29 mm |
| Band thickness | 100 – 120 my |
| Banding tension | 5 – 40 N |
| Type of closure | Heat sealing |
| Internal reel diameter | 40 mm |
| Coil outer diameter | Max. 380 mm |
| Measurements max. banding arch | L 470 x H 208 mm |
| Min size product | W 30 x H 10 mm |
| Max size product | W 460 x H 200 mm |
<
