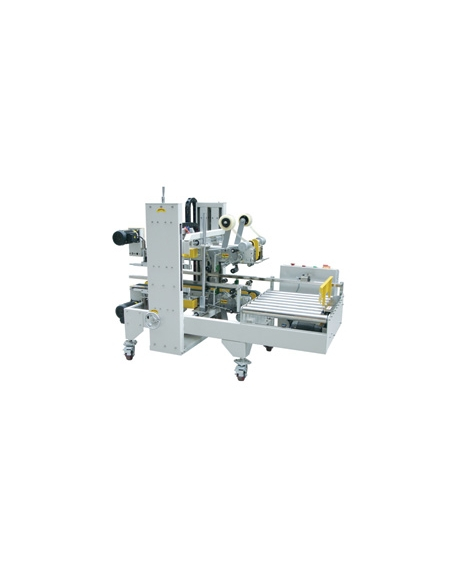

STEP G-50 Semi-Automatic Side and Corner Sealing Machine
STEP G-50 is a semi-automatic machine that manually adjust pressure, height, and width of a carton for corner sealing. Commonly used by industries in pharmaceuticals, cosmetics, toys, electronics and food.
Contact us for pricing information
Description
The STEP G-50 sealing machine focuses on the corner edges of a carton using an adhesive tape. Designed to be lightweight with correlated pulleys and flexible for an easy relocation, installation and to combine with the compatible sealing machines. Set up with driven motor interfacing with the conveying belt, once the carton starts its process and has an air cylinder to hold the two adhesive tapes on top of both sides.
Taking you to the next level with its:
1 Suitable for sealing cartons with equal dimensions
2 Induction control system utilizes photoelectricity
3 Automatically turn cartons 90° and push for sealing
4 With a safety cutter to avoid accident
5 Has steel and stainless steel types
6 High quality imported components.
| Specifications: | |
| Adhesive tape width | W48/60/75mm*L1000 code |
| Packing size(mm) | L320-500xW200-500xH180-500mm |
| Machine dimension | L1900xW1130xH1530mm |
| Machine weight | 580KG |
| Air compression | 6kg/cm3 |
| Power supply | 220/240V、50-60Hz, 1∮ |
| Sealing speed | 460 -600 pcs per hr |
| Table Height | Min H500mm Max H750mm |
Option:
• Combine to STEP A-50P Top, Bottom and Side Belts Carton Sealer, STEP B-56 Top and Bottom Driven Carton Sealer, and STEP C-50 Top & Bottom Sealing Machines and Flap Folding to complete end-of-line process.
No videos available.
