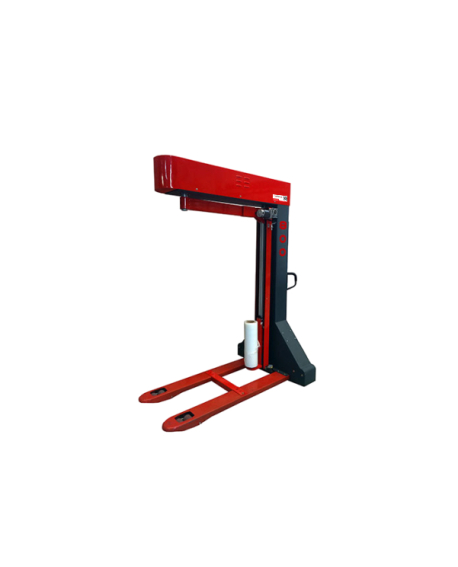

STEP Model 800 Semi-automatic forklift rotary arm
A semi-automatic pallet wrapping machine that has a rotary arm and manual forklift for mobility.
Description
STEP Model 800 optimizes pallet wrapping processes compared to manual wrapping. It does need an operator to manually cut the film upon end of each cycle and remove the pallet to bring in another pallet. The machine is equipped with a pallet height sensor for detection and speed for film carriage and rotary arm can be adjusted as necessary.
Features:
-Pallet height sensor
-Production (depends on operator and load): up to 20 pallets/hour
-PLC controlled, with display control panel
-Adjustable speed for film carriage and rotary arm
-Pallet height sensor
-Screen selectable Top/Bottom wraps and cycles
-Illuminated cycle START/STOP beacon
-Contact safety system: it stops the wrapping arm in case of contact with an obstacle
-Automatic safety mode to start cycle
-Battery charger: based on the country of destination
Accessories
-Direct film brake.
-Mechanical film brake (std.).
-Load detection options: ultrasound.
-Quick-change batteries kit.
Options
-Special heights: 2.800 mm.
-Special turntables: Ø 2.000 mm, Ø 2.400 mm.
-Special weights: 2.000 Kg.
| Specifications | |
| Standard Pallet Dimension and Load | 1200mm x 1000mm (other dimension on request) |
| Standard Pallet Height | Up to 1800mm (other heights on request) |
| Coil (PE Sheet) Width | 500mm |
| Coil (PE Sheet) Thickness | Up to 50my |
| Battery Capacity | > 160 pallets |
| Voltage | 24V/DC |
