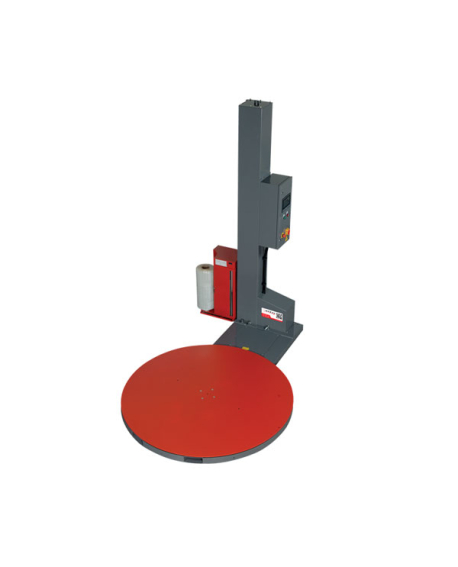

STEP ONE Pallet Wrapper
45.000,00 kr.
State-of-the-art semiautomatic wrapping machine for wrapping palletized loads, equipped with motorized pre-stretch to guarantee the minimum film consumption.
Description
State-of-the-art semiautomatic wrapping machine for wrapping palletized loads, equipped with motorized pre-stretch to guarantee the minimum film consumption. The only manual steps are the cutting of the film and its attachment to the pallet; the rest of operations are completely automatic and easily programmable through the touchscreen with a graphic and intuitive menu.
Main Features:
• Film Tension Control: Powered Pre-stretching
• Film Cutting: Manual
• Pre-stretching Relation: 100-200-300%
• Platform Turning Speed Control: Yes
• Reel Carriage Speed Control: Yes
• Film Maximum Width: 500mm
• Film Maximum diameter: 260mm
• Weight & Sizes:
• Weight: 394Kg
Sizes:
• Length: 2465mm
• Width: 1650mm
• Height: 2546mm
Utilities:
• Electrics: 230V, 50Hz
• Consumption: 1,2 kW/h
Performance:
• Output: 20/30 Pallets/Hour
• Pallet Maximum Sizes: 1200x1000mm
• Load Maximum Height: 2400mm
• Load Maximum Weight: 2000Kg
Platform:
• Turning Device: Platform
• Turning Speed: 12 RPM
• Diameter: 1650mm
• Height: 76mm
Options:
• Wrapper height: 3000mm
• Platform diameter: 1800mm
• Top film sheet dispenser: Manual
• Horseshoe base: Yes
• Platform access ramp: Yes
• Pit frame for floor embedding: Yes
