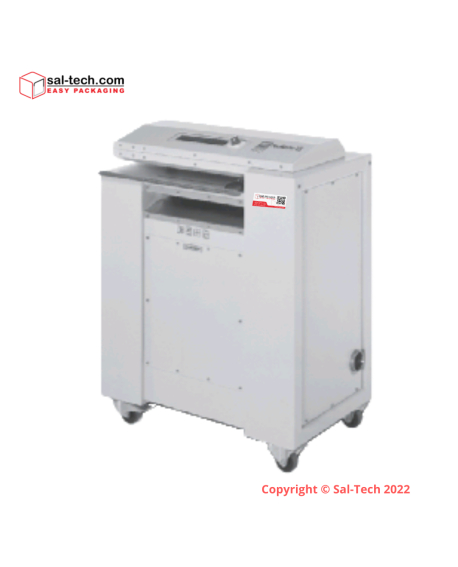

STEP PacMaster VS
In Stock
56.200,00 kr.
STEP PacMaster VS is used for the manufacture of packaging pads made from corrugated board or other carton materials.
SKU:
41700020
Categories:
Shredder Machines
Description
STEP PacMaster VS 4×110 mm, 230V/50-60 Hz, D/F-plug
• Using the scale (12), set the guide (11) to the appropriate position for cutting corrugated into strips of the desired width (fig. 3).
• Feed corrugated materials to the auxiliary cutters via the inlet guide (fig. 4).
• Remove the pre-cut strips after processing is complete.
| Specification | ||
| Model | STEP PacMaster S 4×110 mm, 220 V/60 Hz, 3 phase, 4-pole 20 A | STEP PacMaster VS 4×110 mm, 220- 240 V/50-60 Hz, D/F-plug |
| Weight | approx. 176 kg | approx. 205kg |
| Cutting Width | 4 x 110mm | 4 x 110mm |
| Cutting Capacity | 2 layers cor. board quality ( max. thickness of cor. boards 18mm) | 3 layers cor. board quality 3.1 ( max. thickness of cor. boards 18mm) |
| Inlet guide auxiliary cutter | NA | 20mm |
| Inlet guide, cutting system | 15mm | 20mm |
| Working width cutting system | 425mm | 425mm |
| Cutting speed | 0,18 m/sec. | 0.09- 0.29 m/sec. |
| Power consumption | 3.9 kW | 1.9 kW |
| Power output | 2.2 kW | 1.1 kW |
| Intermittent Service | 24 min | 30 min- 15 min |
| Supply voltage | 400 V/ 50Hz, 230 V/50Hz, 415 V/50Hz, 220 V/60Hz 200 V/50Hz, 200 V/60Hz |
230 V/50Hz 240 V/50Hz 220 V/60Hz |
| Pre-fusing (gl fuse, type 1 assignment) 400V-415V: 200V-230V: |
16 A 25 A |
16 A 13 A |
| Width | 685 mm | 620 mm |
| Depth | 470 mm | 500 mm |
| Height | 950 mm | 1020 mm |
| Noise Level | approx. 68.5 dB (A) | approx. 68.5 dB (A) |
| Item No. | 41700010 | 41700020 |
