STEP Robot Pallet Wrapper Brake Pre Stretch
Price range: 44.995,00 kr. through 56.995,00 kr.

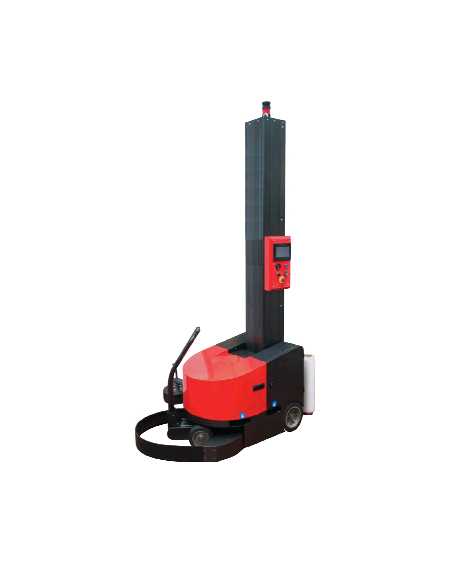

STEP Robot Pallet Wrapper brake or 300% pre stretch is a self-propelled stretch-film wrapping robot for palletized loads with different shapes, sizes and weight. It is equipped with a digital color display 7,2” that allows, in a very simple and functional way, to regulate the programs and the wrapping parameters easily.
Description
Features:
• Mast hinged at the base for easy and quick installation
• Film carriage by transmission chain
• Mast height: 2400 mm (useful height 2300 mm)
• High frequency battery charger integrated
• 2 AGV battery12 volt 120 Ah serial connected
• Operating temperature range: +0° C to + 40 ° C
• Mechanical brake or powered pre-stretch (230 -300%)
• Emergency stop in compliance with CE regulations
• Safety bumper
• Full charge cycle time of 8 hours
• Max.speed rotation: 90 m / min
• Lateral contact wheel with adjustable height
• Lateral holes for forklifting of the machine
• Control panel with color 7,2” touch screen
• Machine controlled by PLC SIEMENS S7/1200
• Indication alarms
• Acoustic wearning and lamp at the cycle start
• Up to 150 pallets (W 800 x L1200 x 1500 mm)
• Emergency wheel in case of low battery
| Specifications: | ||
| Model | STEP ROBOT PALLET WRAPPER BRAKE | STEP ROBOT PALLET WRAPPER 300% |
| Carriage | Mechanical brake carriage | Powered pre-stretch film carriage |
| Pallet Dimensions | Min: 600 x 600 mmMax: no limit | Min: 600 x 600 mmMax: no limit |
| Driving Speed | 35-90 mt/min | 35-90 mt/min |
| Carriage up & down speed | 1,4 – 5 m/min | 1,4 – 5 rpm |
| Power supply charger | 230 volts 1 ph – 50/60 Hz | 230 volts 1 ph – 50/60 Hz |
| Forklifting | Side | Side |
| Product features | ||
| Product dimensions | Min 600 X 600 mm | Min 600 X 600 mm |
| Max product height | 2300mm | 2300mm |
| Max loading capacity | No limit | No limit |
| Film roll features | ||
| Film roll external diameters | 280 mm | 280 mm |
| Film roll height | 500 mm | 500 mm |
| Film roll thickness | 12 – 35 my | 12 – 35 my |
| Film roll internal diameter | 76 mm | 76 mm |
| Film roll max weight | 20 Kg | 20 Kg |
| STEP Item no.: | 43011010 | 43011030 |
Additional information
| Pre stretch type | Brake Pre Stretch, 300% Motor Pre Stretch |
|---|
