STEP TP 502MV Strapping Machine
Price range: 17.500,00 kr. through 35.800,00 kr.

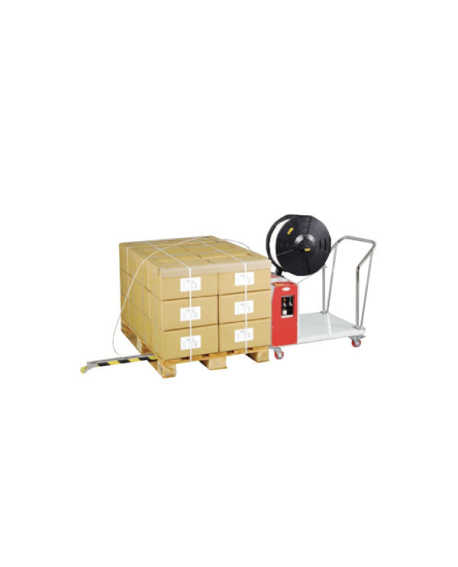

STEP TP 502 MV or Mini Vertical. a Semi-Automatic Pallet Strapping Machine, suitable for corrugated card boards, concrete blocks and loaded pallet with cardboard boxes holding any type of products. Provides ergonomic and cost – effective solution for low volume vertical pallet strapping applications.
Description
A Semi-Automatic Pallet Strapping Machine, suitable for corrugated card boards, concrete blocks and loaded pallet with cardboard boxes holding any type of products. Provides ergonomic and cost – effective solution for low volume vertical pallet strapping applications. Eliminates the use of manual tools, dispensers and can be moved easily beside the load you want to strap without moving the pallet.
Features:
• Direct Drive Technology with German Made DC Motors
• Electronic Tension Control
• Compact Mechanical Strapping Head
• Jog Switch
• Good for Lower Height Pallet
• Adjustable Weld Cooling Time
• Mobility
• Various Applications
| SPECIFICATION: | ||
| Description | STEP TP-502MV | STEP TP-502MVB |
| Strap Type | PP Strap | PP Strap |
| Strap Width | 9mm, 12mm, 15.5mm | 9mm, 12mm, 15.5mm |
| Strap Thickness | 0.6 – 0.8mm | 0.6 – 0.8mm |
| Strapping Speed | 18sec., 1 Strap(Package Size 1200L x 800W x 1000H mm) | 18sec., 1 Strap(Package Size 1200L x 800W x 1000H mm) |
| Min. Package Height | 380mm (Pallet is included) | 380mm (Pallet is included) |
| Strap Core Inner Diameter | 200mm (280mm is also available) | 200mm (280mm is also available) |
| Tension Range | 8 Kg – 70 Kg | 8 Kg – 70 Kg |
| Length of the Sword | 1250mm | 1250mm |
| Net Weight | 93 Kg | 153 Kg |
| Machine Dimension | 585W x 2315D x 1074H mm | 585W x 2315D x 1074H mm |
| Power Consumption | 0.33 Kw | 0.33 Kw |
| Temperature of Working Environment | 5 – 40°C | 5 – 40°C |
| Electrical Requirements | 230V 50Hz 1Ph | 115V 60Hz 1Ph or Battery |
| Request for other type of Supply Voltage | 230V 50Hz 1Ph or Battery | |
| Request for other type of Supply Voltage | ||
| Battery Spec | NA | VRLA Type, 12V, 50Ah (2 Pieces) |
| Battery Charge Time | NA | 5-7 Hours (depends on the environment) |
| Battery Capacity | NA | Approx. 1000 – 1500 strapping cycles per charge (depends on package size and tension) |
| Battery Lifespan | NA | Approx. 300 Charges |
| STEP Item no. | 41000150 for 230V 50Hz Version | 41000160 for 230V 50Hz version41000161 for 115V 60 Hz version |
Additional information
| Option | AC Powered, Battery Powered |
|---|
