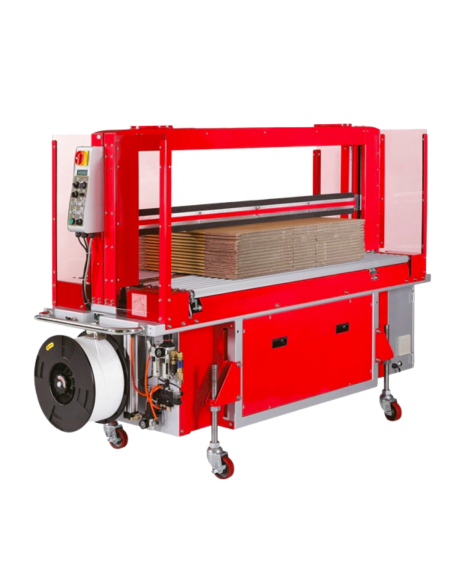

STEP TP-702C Corrugated Strapping Machines
125.000,00 kr.
A high speed corrugated strapping machine equipped with latest motor technology and features that helps reduce maintenance cost, eliminate downtime, and increase efficiency of production in the warehouse.
Description
STEP TP-702C is a strapping machine built particularly for the corrugated industry. It has a reliable and accurate strapping head for efficient and effective bundling requirements. This equipment has a PLC control for easy maintenance, operation, and programming as well as less components for less maintenance cost. A cost-effective design for long term quality and fast strapping of corrugated boxes.
Taking you to the next level with its:
1. Strapping Head: Strapping head is crafted without belts, clutches, or pulleys but uses the latest motor technology providing reliability and accuracy. A compact design requiring less maintenance and cost due to its fewer components.
2. Siemens PLC Control: Function for easy use whenever operating, maintaining, and programming
3. Free Access to Strap Guides: This feature enables fast access to strap guides making a friendly design for maintenance
4. Hinged roller table: Upkeep of table top is simple as it is easy to open and of ergonomic design
5. Auto Strap Ejector: Automatic strap ejectors helps in eliminating downtime as it dispels unnecessary straps mechanically
6. Patented Jammed-Strap Ejection Device: Jammed strap ejection aids in getting rid of blocked straps easily
7. Full-Width Pneumatic Press: Makes movement of pneumatic press steady and reliable at its best
8. Multiple Strap Function: Choice of single, double, continuous strapping, or transit mode
9. Variable Conveyor Speed: A fully automatic design with conveyor speed of 15 to 60 meters per minute
10. Strap End Ejector: An easy to clean component, this makes next coil change simple as it ejects end of strap from strap feeding
11. Adjustable Table Height: Height of top table can be modified between 700mm and 1000mm
| SPECIFICATIONS: | |
| Electrical Requirement | 220V, 380V, 400V, 415V 50/60Hz 3PH |
| Capacity | 33 bundles/minute (single strap)20 bundles/minute (double straps) |
| Arch Size | TP-702C-L, 1650 mm(W) x 450 mm(H)TP-702C-M, 1250 mm(W) x 450 mm(H) |
| Strap Width | 5mm, 6mm, 9mm |
| Strap Type | PP Strap |
| Tension Range | 1kg – 32kg |
| Bundle Weight Maximum | 40kg |
| Bundle Size Minimum (LxWxH) | 300mm x 200mm x 20mm |
| Transport Speed | 15M – 60M/minute |
Options:
• Siemens display control
• Light tree alarm with low strap sensor (Triple Lamp)
• Adjustable backstop
• Foot pedal switch
• Strapping cycle counter
Available in different models:
• STEP TP-702CQ Corrugated 4-Side Bundle Squaring and Strapping System
• STEP TP-702CCQ Corrugated 3-Side Bundle Squaring and Strapping System
Additional information
| Machine size | TP-702C Arch size – STEP TP-702C-M arch size 1250x450mm, TP-702C Arch size – STEP TP-702C-L arch size 1650x450mm |
|---|
