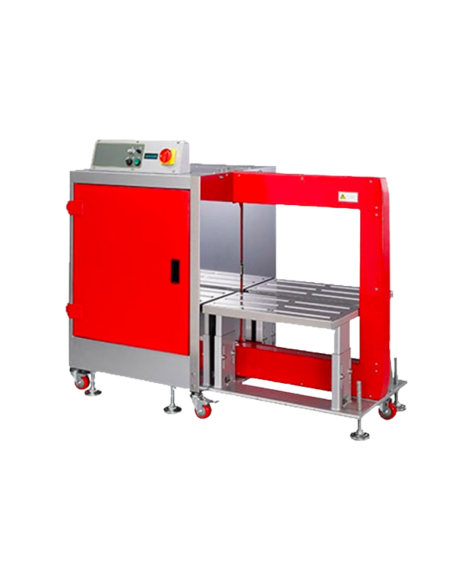

STEP TP-702Y Automatic Side Sealing Strapping Machine
89.990,00 kr.
An automatic side sealing strapping machine that is suitable for a wide range of application. Appropriate for tying a huge and heavy product and household appliances. Strapping speed at 60 straps per minute, production is with certain accuracy and reliability.
Description
STEP TP-702Y is an automatic strapping machine with a sealing head fixed on the side. Designed for use in dusty environment which may be situated in sawmill plants, brick and/or tile industry. This machine has various arch size availability and an easy control display for less maintenance effort enhancing a fast operating business.
Taking you to the next level with its:
1. Strapping Head: Design for accuracy and reliability, the machine’s motor is German-made and is equipped with the latest brushless motor technology
2. Display Panel: A user friendly function to control operation and maintenance without difficulty
3. Free Access to Strap Guides: Patents registered. This enables a quick access to strap guides without use of different tools for a user friendly maintenance design
4. Tension Force: This downward force plays a consistent role to keep hold of bundle for a much stronger package
5. Strap Dispenser: A fully ergonomic strap dispenser design makes changing of coil convenient with less labor effort which also moisture resistant
| SPECIFICATIONS: | |
| Strapping Speed | 60 straps/minute |
| Strap Requirement | Width: 5mm, 6mm, 9mm, 12mm |
| Thickness: 0.35mm – 0.65mm | |
| Tension Range | 1kg – 32kg for 5mm, 6mm, and 9mm1kg – 45kg for 12mm |
| Dimension (WxDxH) | 1450mm x 670mm x 1200mm – 1300mm |
| Table Height | 445mm – 645mm |
| Machine Net Weight | 294kg |
| Package Weight (Maximum) | 80kg |
| Package Dimension (WxH) | Min: 30mm x 80mm |
| Max: 550mm x 415mm(Arch Size 600mm x 650mm) | |
| Strap Core Diameter | 200mm |
| Conveyor Speed | 10M – 45M/minute |
| Power Consumption | 500W |
| Electrical Requirements | 110/220/230/240V 50/60Hz 1PH220V, 380V, 400V, 415V 50/60Hz 3PH |
Arch Size:
| H W | 400 | 600< | 800 | 1000 | 1300 |
| 650 | STANDARD | N/A | |||
| 850 | N/A | N/A | |||
| 1050 | N/A | ||||
| 1250 | N/A | ||||
| 1650 | N/A | N/A | N/A | N/A |
Options:
• End cycle and error signals
• Dual Press bar
• Small package
• Foot pedal switch
• Side Pusher
• Light tree alarm with low strap sensor (triple lamp)
• Energy saving transit with auto sleep mode
Also available in different models:
• TP-702YA Fully Automatic Side Sealing Strapping Machine
• TP-702YM Steel Frame Automatic Side Sealing Machine
• TP-702YAM Steel Frame Fully Automatic Side Sealing Machine
