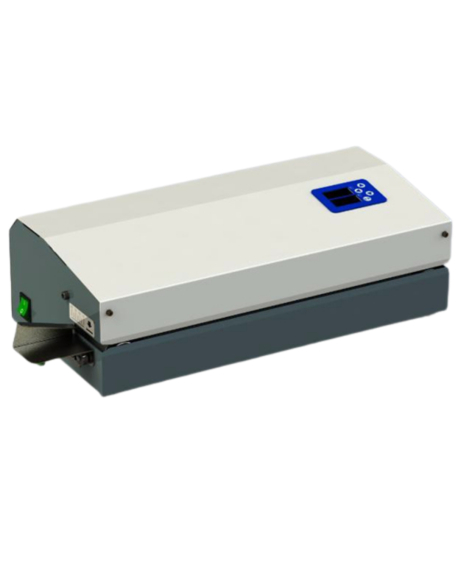

STEP UP 100-L Pharmaceutical Sealer

Description

STEP UP 100-L Automatic Medical sealing Machine

Main Characteristics:

• Auto-control function, continuous operation; substitution of manual sealing machine
• Temperature controlled by a micro computer, accuracy ±1%, working temperature range 60~220°C
• Fast heating, 40seconds required from room temperature to 180°C
• Adjustablefixed-forcesystem, suitable for sealing paper-plastic bags, 3D paper-plastic bags and paper-paper bags
• Advanced flat ceramic heating components, high-temperature stability, long life expectancy and high heat efficiency.

Specification

• Sealing speed 10m/min Automatic controlled by sensor.
• Sealwidth 12mm; Voltage:220V50Hz
• Power: 500W
• Seal strength meets YY/T0698.5-2009 requirement
• Weight: 15Kg
• Seal margin: 0~35mm adjustable
• Dimension: 482x242x157(mm)’

• 49860010 MANUAL UK
• STEP UP 100-L CATALOG
• STEP UP 100-L MANUAL DK
