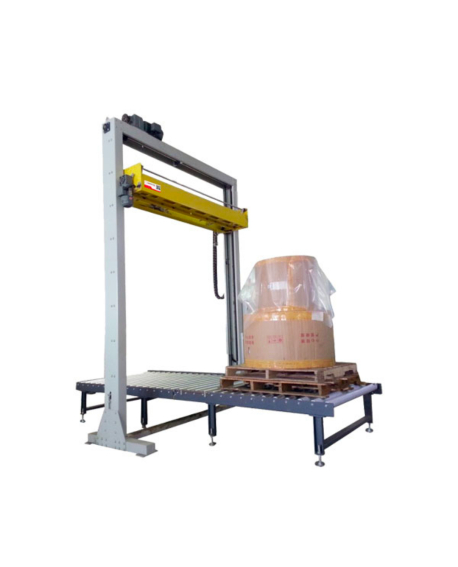

STEP L3DSD2 Fully Automatic Double Rotary Arm Stretch Wrapper with Top Sheet Dispenser
This machine has been specially developed for very high capacity and faster wrapping speed. Reliability, robustness, quality and flexibility are the essential characteristics of this machine.
Contact us for pricing information
Description
STEP L3DSD2 Fully Automatic Double Rotary Arm Stretch Wrapper with Top Sheet Dispenser – is designed and equipped with Double Film Carriage, one for each side to properly secure the wrapping. Equipped with a Top Sheet Dispenser installed on top of the conveyor line, suitable for products that need watertight wrapping.
Features:
• Rotary speed, film carriage speed and the film tension can adjustable
• Automatic stretch film application & cutting is Pneumatically driven
• Equipped with Automatic height detection by photocell
• Machine is equipped with various durable top of the line components
• Equipped with Alarm and Emergency Button for Operators Safety
• PLC Controls the whole system with User Friendly Control Panel (HMI)
• Powered Roller Conveyor Line is made of galvanized carbon steel
| Specifications: | |
| Pallet Size | Euro (1200×800), 1000×1200 and 1200×1200 |
| Wrapping Height | 500-2100mm |
| Packing Speed | 50-60 pallets/hour |
| Rotation Speed | 4-20 rpm (adjustable) |
| Carriage Speed | 6m/min (adjustable) |
| Film Carriage Type | Double film carriage |
| Powered pre-stretch film carriage | ratio:250% film tension can adjustable |
| Cut method | Heater cutting |
| Top Sheet cut method | Knife cutting |
| Top Sheet pulling speed | 12m/min |
| Top Sheet size | W 1700mm, Length is adjustable |
| Conveyor height | 600mm (can be customize) |
| PE Film | PE film, thickness 50-75 microns, width 1600-1700mm, net weight 120kgs max |
| Stretch film | Thickness 17-35microns, width 450-500mm, paper core 76mm, max diameter 250mm |
| Air pressure | 0.4-0.7 Mpa |
| Control system | PLC+HMI+Frequency inverter |
| Voltage | 3 Phase 5-line AC 380V 50Hz |
| STEP Item No. for Fully Automatic Double Rotary Arm Stretch Wrapper | 43083010 |
| STEP Item No. for Top Sheet Dispenser | 43083020 |
| Description of Option | STEP Item No. of Option |
| 2500mm powered Roller conveyor line | 43083010-100 |
| 1800mm powered Roller conveyor line | 43083010-110 |
| 3600mm powered Roller conveyor line | 43083010-120 |
| Safety fence L25*H2m | 43083010-130 |
| Safety light curtain | 43083010-140 |
| Forklift stopper | 43083010-150 |
| Safety door lock | 43083010-160 |
| Control system fee | 43083010-170 |
Options:
• Wrap height 2400mm or 2600mm. Load size could be custom made to specific applications
• Safety fencing for better protection of operators
• Infeed/outfeed conveyors
Options:
• Wrap height 2400mm or 2600mm. Load size could be custom made to specific applications
• Safety fencing for better protection of operators
• Infeed/outfeed conveyors
