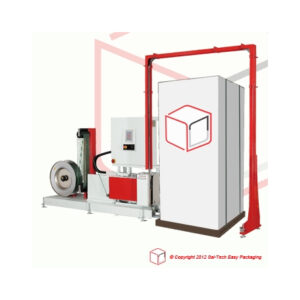

STEP TP-733VTS Fully Automatic Vertical Pallet (Top Seal) ZELOS
235.375,00 kr.
STEP TP-733VTS Fully Automatic Vertical Pallet (Top Seal) ideal for strapping pallet inline when they or the environment demands a top seal
Description
The STEP TP-733 VTS Fully Automatic Vertical Pallet Strapping Machine with top seal over many advantages in environments that are dusty or moist, also an advantage for stabilizing the load on the pallet before strapping it to the pallet. Suitable for low pallet heights as well as higher pallets within the machine maximum limits
• Standard size W1650xH1600
• Capacity up to 63 pallets/hour with double parallel strap
• For PP or PET strap 9, 12, 15.5 or 19mm
• Tension 1.100-3.200N option 200-1.200N
• Core Ø406
• Min pallet W350xH300
• Electrical 220-415V as per demand 50-60Hz 3phase
| Arch sizes: | |||
| HW | 1600 | 2000 | 2400 |
| 1650 | STD | ||
| 2050 | |||
| 2450 | |||
| 2850 | |||
| Specification Data | |
| Capacity | Up to 63 pallets/hour (2 parallel straps) |
| Strap Type | PP and PET strapping |
| Strap Width | 9 mm, 12 mm, 15.5 mm, or 19 mm |
| Tension Range | 1,100 – 3,200 N (standard) 200 – 1,200 N (option) |
| Minimum Package Size | 350 mm (W) x 300 mm (H) |
| Strap Core Size | 406 mm |
| Electrical Requirements | 220V, 380V, 400V, 415V 50/60Hz 3PH |
